FEATURES

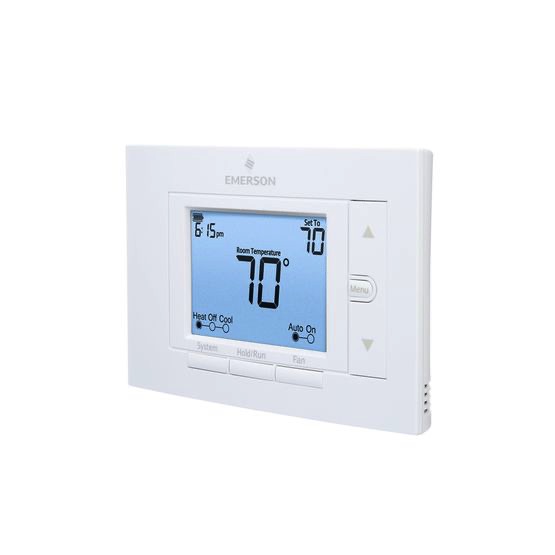

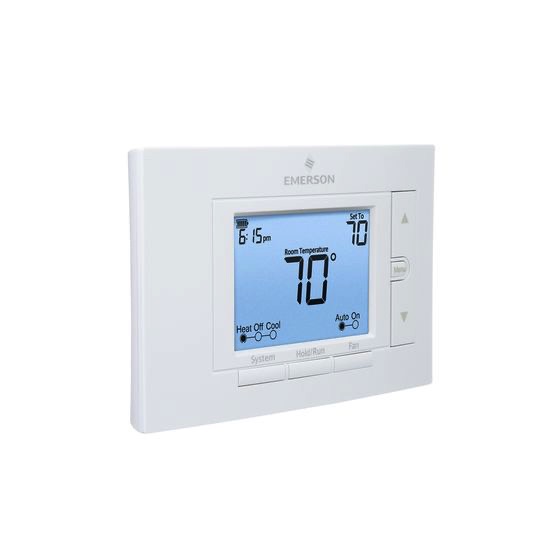

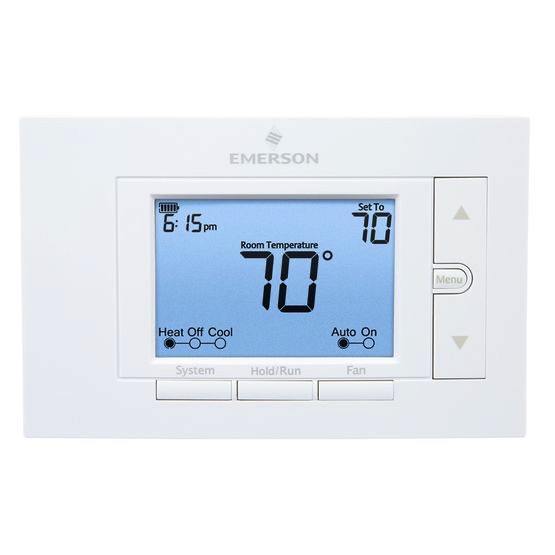

• Large display, bright backlight, high contrast screen

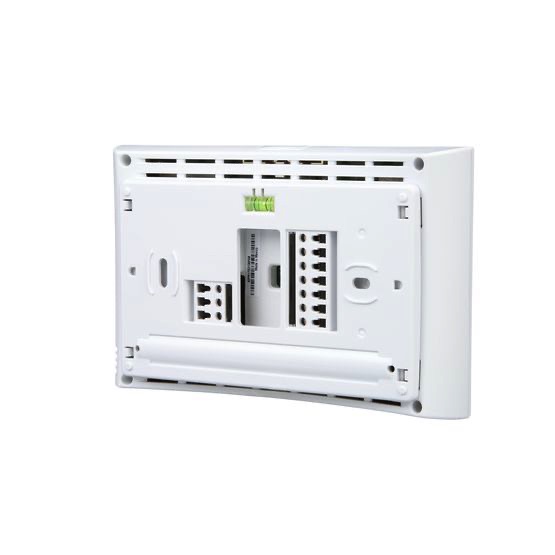

• Easy to install with built-in level, simple set-up menu and separate subbase
• Selectable programming, choice of 7 Day, 5+1+1 Day, 5+2 Day, or Non-Programmable is standard
• Dual fuel control, no outdoor sensor required, standard on all staging models
• Auto changeover on all universal models
• Keypad lockout and adjustable heat/cool temperature limits
• 5 year limited warranty for professionals

SPECIFICATIONS

Program Options Programmable - 7 Day, 5+1+1 Day or Non-Programmable

Program Periods Per Day Options 4, 2, None

Style Horizontal

Typical Applications Gas/Oil/Electric

3-Wire Zone Valve Connections Yes

Millivolt Compatible Yes

Economizer Connections No

Humidity Control RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L

Heat Pump Dual Fuel Control Yes, No Sensor Required

Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option None

Remote Sensor Options None

Power Source Battery, Hardwire

Auto Changeover (Heat/Cool) Yes

Fan Option Auto, On

Filter Change Reminder Yes

Energy Mgt. Recovery/Early Start Yes

Keypad Lockout Total

Set-Point Temperature Limits Yes

Display Type 5 square in.

Backlight Key Press or Continuous with Common Wire

Voltage 20-30 Vac, NEC Class II 50/60Hz

Battery Power Rating mV to 30 Vac

Amp Rating Staging Models: 1.5 A per terminal, 2.5 A maximum all terminals combined; Single Stage Models: 1.0 A per terminal, 1.5 A maximum all terminals combined
