FEATURES

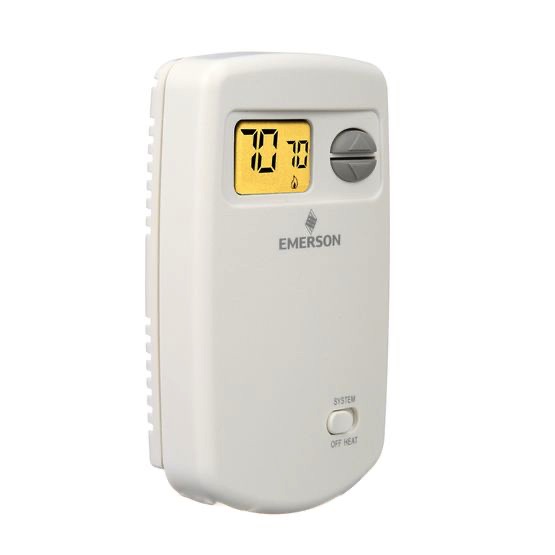

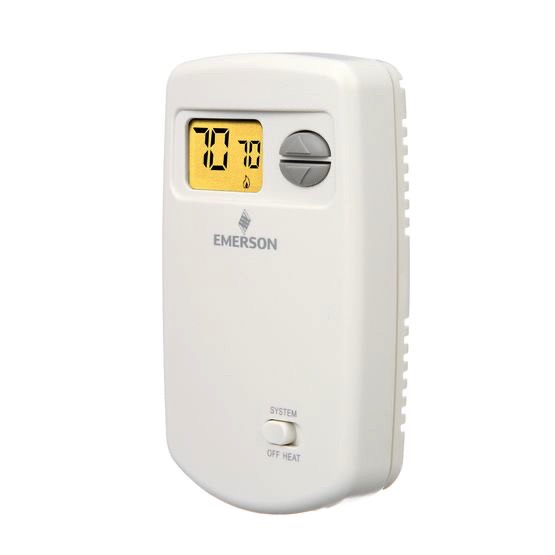

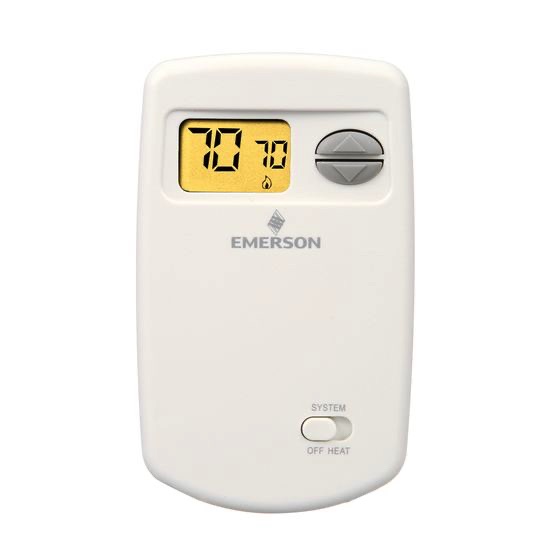

• Vertical model
• Non programmable model
• Selectable Celsius or Fahrenheit temperature display
• Fossil fuel or electric heat compatible
• Electronic accuracy
• Temperature accuracy for customers on a budget

SPECIFICATIONS

Program Options Non programmable

Program Periods Per Day Options None

Style Vertical

Typical Applications Gas/Oil/Electric

3-Wire Zone Valve Connections No

Millivolt Compatible Yes

Economizer Connections No

Humidity Control RH, W,

Heat Pump Dual Fuel Control No

Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option None

Remote Sensor Options None

Power Source Battery

Auto Changeover (Heat/Cool) No

Fan Option Auto, On

Filter Change Reminder No

Energy Mgt. Recovery/Early Start No

Keypad Lockout No

Set-Point Temperature Limits No

Display Type 1.2 square in.

Backlight Key Press

Voltage 20-30 Vac, 50/60Hz

Battery Power Rating mV to 30 Vac

Amp Rating Staging Models: 1.5 A per terminal, 2.5 A maximum all terminals combined

Amp Rating 45° to 99°
