FEATURES

• Rugged snap-action contacts

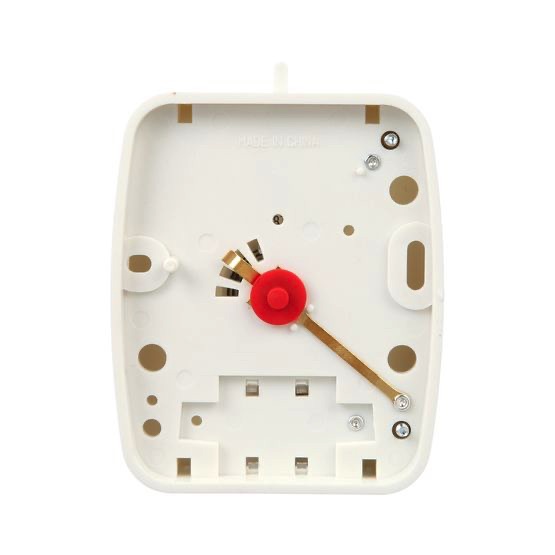

• Adjustable heat anticipator

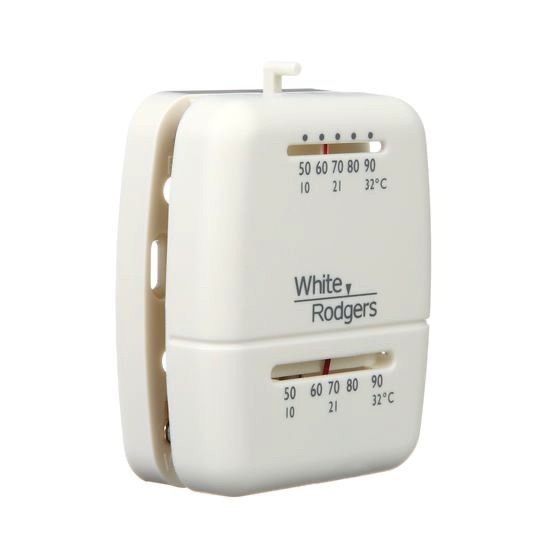

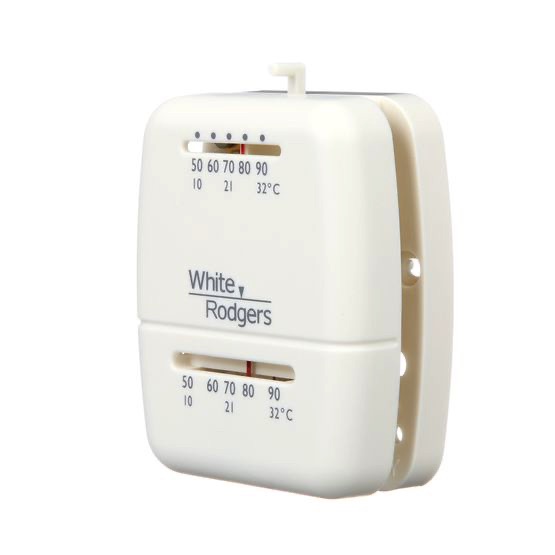

• Built in bimetal thermometer

SPECIFICATIONS

Stages Heat/Cool Single Stage - 1H/0C

System Switch None

Contacts Snap-Action

Typical Applications Gas/Oil/Electric, but does not control fan on a call for heat

Millivolt Compatible Yes

Electric Heat Strip Yes

”OFF” Position No

Accessories None

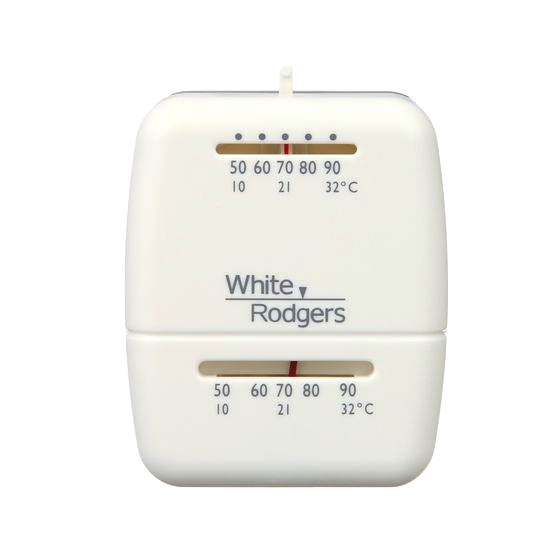

Range 50-90°F (10-32°C)

Style Vertical

Terminals R, W

Voltage mV to 30 Vac 50/60 Hz or DC

Amperage Anticipation Adjustable from 0.15 to 1.2 Amps

Overall Dimensions 3.75”H X 2.88”W X 1.50”D
