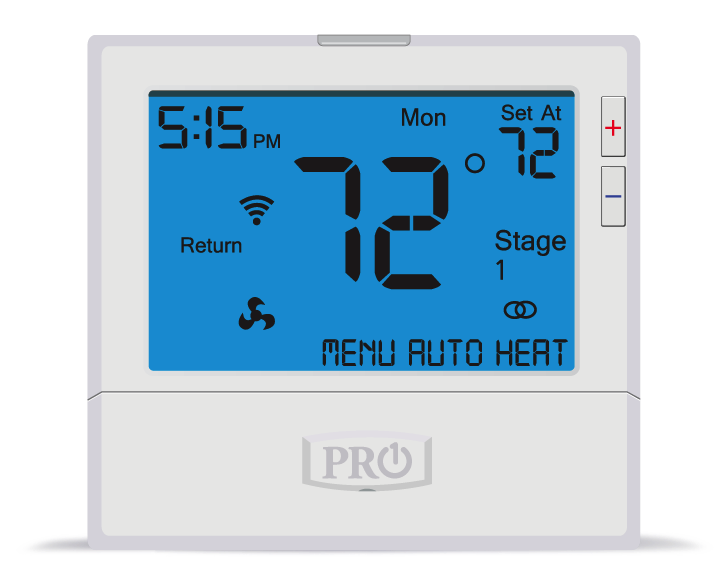

T855I WIFI MULTI STAGE PROGRAMMABLE TOUCH SCREEN THERMOSTAT

BY PRO1



FEATURES

  • 7 Day or 5/1/1 progammable
  • Auto Changeover
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 8 sq. inch display
  • Blue backlight
  • Glow in the dark light button
  • Programmable fan
  • Electric or Gas configurable
  • Room temperature calibration adjustment
  • Separate heating and cooling swing (cycle rate) adjustments



  • Keypad lockout
  • Heating and cooling setpoint limits
  • 5 minute compressor delay protection (selectable on or off)
  • Filter change indicator(selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power
  • 5 year warranty




SPECIFICATIONS


The control temperature range

44˚F to 90˚F (7˚C to 32˚C)

Load rating

1 amp per terminal, 1.5 amp maximum all terminals combined

Display accuracy

± 1 °F

Swing (cycle rate or differential)

Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F

Power source


18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)

Battery power from 2 AA Alkaline batteries

Operating ambient

32° to +105° (0° to + 41°C)

Operating humidity

90% non-condensing maximum

Dimensions of thermostat

4.7"W x 4.4"H x 1.1"D
